BSQ Solar Environmental Test Chambers

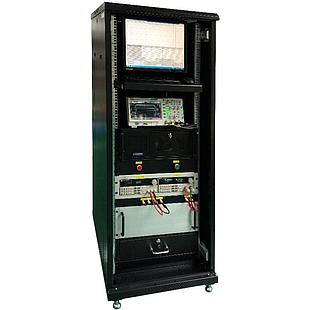

Test Purpose
Evaluate the thermal performance of bypass diodes and their long-term reliability against harmful effects such as heat spots.

Product Features:
-The system automatically forms a fitting curve and determines the test result.
-The equipment is equipped with an oscilloscope to grasp the marking curve.
-Thermal Runaway Test Circuit Switching ≤10ms

Contact for Pricing

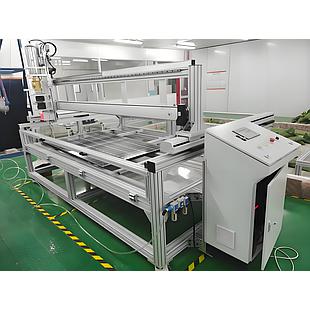

Test Purpose
Assess the ability of components to withstand hail impacts.

Product Feature
- Ice ball launch speed is measurable
-The velocity measurement unit is completed by using two photoelectric sensors mounted in front of the transmitter tube, the middle distance of the two sensors is 10cm, and the speed is obtained by v=s/t and displayed in real time.
- Speed test device consists of three parts: detection sensor, high-speed response module and software module. The system uses stable performance photoelectric sensor and programmable controller to realize the speed measurement function.

Contact for Pricing

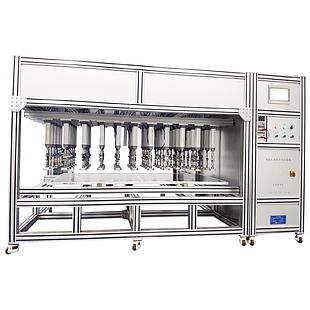

Test Purpose
The dynamic mechanical load tester is used to verify the ability of components to withstand static and dynamic loads under conditions such as wind or ice. This machine is used to test the compressive strength of photovoltaic modules, using dynamic pressure holding technology, simulated load test, to evaluate the product under load state, compressive ability.

The system realizes the simulation of dynamic load in the form of cylinder & sucker, Pressure mode sucker + pressure sensor + cylinder + proportional valve +PLC. Each cylinder drives a sucker, and each cylinder piston rod is installed with a tension pressure sensor. The air pressure is calculated by PLC according to the real-time feedback value of the pressure sensor, and the cylinder movement is controlled by adjusting the opening of the proportional valve, so as to achieve the control of the force value. Each cylinder is a separate control module. Periodic load pressure tests are performed on the mounting plane of the component. The main frame of the system is 8080 European standard aluminum profile design, taking into account the installation of conventional components, the installation of screw holes and the installation of double glass components. The device also provides real-time monitoring of component shape variables as well as current continuity and component temperature during testing.

Product Features
- The control software synchronously collects the pressure of each cylinder, solar panel pressure, panel temperature, continuous current, panel voltage, shape variable and other information
- Humanized human-machine interface graphics, the current can be set arbitrarily, which can meet the diverse needs of customers
- Visual ICONS and EXCEL output form to meet the diverse needs of customers
- Power Supply specification 60V 5A (customizable)
- Panel installation method: block installation, screw hole installation, sun tracking installation bracket installation
- Check the period of equipment special load unit with thousands (optional)

Contact for Pricing

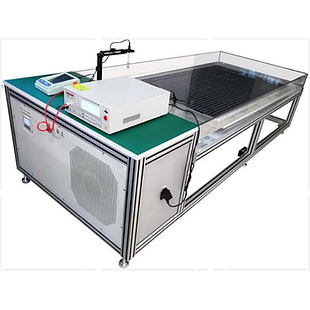

Test Purpose
Evaluate the insulation performance of components under wet operating conditions and verify that moisture from rain, fog, dew or melting snow can enter the working part of the internal circuit of the component. If moisture enters the area, it may cause corrosion, surges or safety incidents.

Product Features
Test Characteristics
- Equipment standard output DC2000V, can be upgraded to 2500V (customized), the standard output can meet the conventional 1500V system voltage component test requirements
- Power supply with leakage current alarm function, alarm can be set range
- Can set the testing time, when at the end of the experiment, the power system automatically stop
- Can be controlled by computer program, automatic data access, excel export (optional)

Temperature Controlled Water sink
- Temperature control sink is made of aluminum profile + imported PP sheet, beautiful appearance
- PID automatic temperature control to achieve standard 22 ±2 °C requirements (equipment with heating and cooling functions)
- The equipment is equipped with a standard conductivity tester, which meets the resistivity test in the standard
- Conductivity range: 0-1999us/cm ±1.5%F · S, temperature test range: 10.0-40.0°C ± 1°C

Insulation Test Part
-Refer to IEC 61215 MQT 03

Contact for Pricing

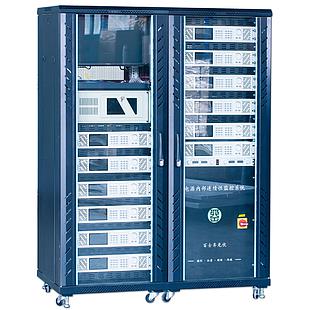

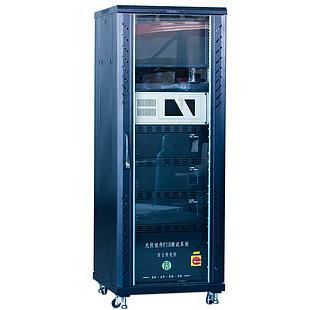

Product Introduction
PID power supply has multi-channel output, can provide multiple components simultaneously test, voltage can be continuously adjusted voltage parameters can be displayed in real time.

PID monitoring communication and according to the customer's self-defined time requirements, the system output high voltage to test the tested products. The system can monitor the internal temperature and humidity of the environmental test chamber according to the latest standards (on-line communication with high temperature dehumidification equipment).

When the environmental test chamber fails, the PID power supply will automatically receive the fault information of the environmental test chamber. The software will force the power system output to "0" to avoid damage to the remaining test samples and equipment safety due to the incompatibility of the two systems.

Power supply has current alarm function, alarm can be set pattern.

Contact for Pricing

Test Purpose
Verify the component's ability to withstand the effects of long-term moisture penetration

Contact for Pricing

Test Purpose
Simulation of the effect of long-term expansion and contraction of photovoltaic modules on welding performance
.
Product Feature
- Current and temperature relationship customized
- System is equipped with communication port connected with environmental chamber
- Temperature channel and current channel are freely combined
- The control software is independently developed by factory and supports custom development

Contact for Pricing

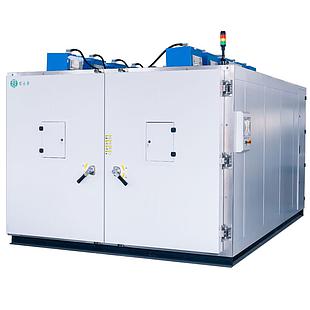

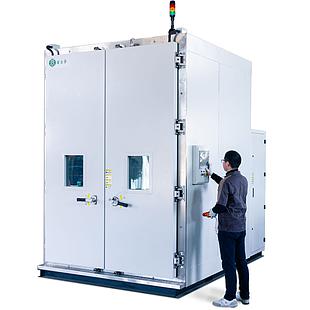

Test Purpose

Determine the ability of the component to withstand thermal mismatch, fatigue and other stresses due to repeated temperature changes Determine the ability of the component to withstand the effects of high temperature, high humidity and subsequent sub-zero temperatures. Determine the ability of the component to withstand the effects of long-term moisture penetration.

Product feature:
-- Energy saving: Adopt thermal expansion valve + capillary + cold output of the latest cooling capacity control technology, change the traditional heater offset cooling capacity to control the box temperature. power
loss to achieve energy saving effect (40% energy saving than traditional methods).

--The Internet of Things: environmental test chamber and power supply system are both produced by factory, which can form a LAN to run the environmental test chamber with external PID power supply and environmental monitoring power supply system
(It can automatically stop the external PID equipment when the aging equipment fails, reduce the risk of electric shock and protect the sample safety to meet the requirements of the new PID test standard.)

Contact for Pricing

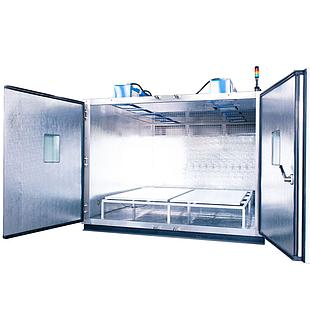

Test Purpose
Prior to thermal cycling/wet freezing tests, photovoltaic modules are pretreated with ultraviolet (UV) radiation to assess the UV resistance of materials and adhesives that are susceptible to UV degradation.

Main Technical Parameter
1) Chamber panel Insulation thickness: 100~150mm
2) Module temperature control: 55°C~85°C (Could customize)
3) Temperature uniformity: ±2°C
4) Test specimen temperature uniformity: ±4°C
5) Light source driver: EPS
6) Light Source: metal halide lamp
7) Light source power: 2KW
8) Light lifespan:1500h (Actual ≥2500h)
9) Spectrum range: 280~320nm 320~400nm
10) UVB/(UVA+UVB): 3%~10%
11) Light intensity range: ≤ 250W/m2(max to 900W/m2)
12) Nonuniformity: ≤±10%
15) Cooling method: Air cooled /Water cooled

Product Feature
Controller Software

Customized Function:
-XY axis uniformity scanning system
- Multiple UV tests
- UV+ Damp Heat Test
- UV+ Humidity Freeze Test

Contact for Pricing

System used to determine the ability of the component to withstand the heat spot effect and evaluate welding melting or package degradation that may result from this effect. This defect can be caused by battery failure, mismatched batteries, being shaded or soiled.

Product Feature
1) Software

2) Customized Function
-XY axis uniformity scanning system
- Matched inverter
- High temperature high humidity and light
- High low temperature and light

3) Equipment Feature
-Equipped with automatic adjustment of light intensity function
-Adopt Siemens PLC, to ensure the chamber could run steadily for a long time
-Walk-in and drawer type optional, meet customization requirements

Contact for Pricing
