    Optical Components

    Bandpass Filters
    Filters
    Gratings
    Filters for Solar Simulation
    Reflectors
    Optical Coupling Assemblies

    2 4
    Filter View Filter
    Sort by
    X

    Product Category

    View Filter
    • Filter By
      Brands
      (Clear all)
      • Price Filter
      $ - $
    x
    Clear all x

    Filter Option

    .
    $ 730.00
    In stock
    .
    $ 730.00 730.0 USD
    Price Valid only in North America

    A Longpass filter designed for use with Sciencetech systems in the Infrared range.
    Diameter (mm) 25.0
    Diameter Tolerance (mm) +0.0 / -0.1
    Thickness (mm) 1.0
    Thickness Tolerance (mm) ±0.2
    Clear Aperture (%) 90
    Surface Accuracy (λ) 3 - 5
    Surface Quality 60-40
    Parallelism (arcminutes) <10
    Transmission (%) >90
    Transmission Wavelength (μm) 2.52 - 4.80
    Optical Density OD >3.0
    Cut-On Wavelength (μm) 2.40
    Cut-On Wavelength Tolerance (μm) 0.09
    Cut-On Tolerance (%) 5 of Peak Transmission
    Slope Factor (%) <6
    Substrate Germanium
    Operating Temperature (°C) -62 to +71
    RoHS Compliant

    Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
    $ 520.00
    In stock
    A Longpass filter designed for use with Sciencetech systems in the Infrared range.
    Diameter (mm) 25.0
    Diameter Tolerance (mm) +0.0 / -0.1
    Thickness (mm) 1.0
    Thickness Tolerance (mm) ±0.2
    Clear Aperture (%) 90
    Surface Accuracy (λ) 3 - 5
    Surface Quality 60-40
    Parallelism (arcminutes) <10
    Transmission (%) >90
    Transmission Wavelength (μm) 2.52 - 4.80
    Optical Density OD >3.0
    Cut-On Wavelength (μm) 2.40
    Cut-On Wavelength Tolerance (μm) 0.09
    Cut-On Tolerance (%) 5 of Peak Transmission
    Slope Factor (%) <6
    Substrate Germanium
    Operating Temperature (°C) -62 to +71
    RoHS Compliant

    Please speak with your authorized Sciencetech technical sales staff for a full list of specifications.
    $ 520.00 520.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    Wavelength range: 400-1600nm
    Dispersion: 16nm/mm (When used with 9030 monochromator)
    $ 1,593.00
    In stock
    Wavelength range: 400-1600nm
    Dispersion: 16nm/mm (When used with 9030 monochromator)
    $ 1,593.00 1593.0 USD
    Price Valid only in North America

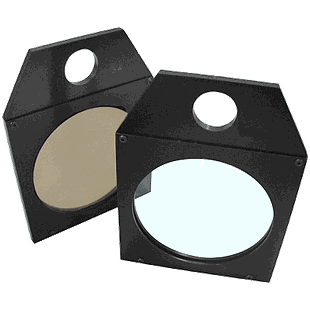

    A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.
    $ 7,995.00
    In stock
    A 6" x 6" (152.4 mm x 152.4 mm) air mass filter specifically designed for Sciencetech's Fresnel Solar Simulator Series (SHC-), including filter holder. The AM0 spectrum simulates the solar spectrum just outside Earth’s atmosphere, where there is very little atmosphere-related absorption of solar radiation. This is generally used for space applications.
    $ 7,995.00 7995.0 USD
    Price Valid only in North America

    This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
    Please see the technical datasheet for additional information.
    $ 30.00
    In stock
    This filter is part of Sciencetech's standard "Order Sorting Filter Set". It can be ordered separately if required.
    Please see the technical datasheet for additional information.
    $ 30.00 30.0 USD
    Price Valid only in North America

    Wavelength range: 300-1200nm
    Dispersion: 12nm/mm (When used with 9030 monochromator)
    $ 1,450.00
    In stock
    Wavelength range: 300-1200nm
    Dispersion: 12nm/mm (When used with 9030 monochromator)
    $ 1,450.00 1450.0 USD
    Price Valid only in North America

    .
    $ 730.00
    In stock
    .
    $ 730.00 730.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    .
    $ 4,000.00
    In stock
    .
    $ 4,000.00 4000.0 USD
    Price Valid only in North America

    Holographic Grating
    2400 lines per mm
    Blazed at 250nm
    Substrate Size: 110 x 110 x 16mm
    Ruled Area: 102 x 102mm
    $ 5,500.00
    In stock
    Holographic Grating
    2400 lines per mm
    Blazed at 250nm
    Substrate Size: 110 x 110 x 16mm
    Ruled Area: 102 x 102mm
    $ 5,500.00 5500.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    .
    $ 730.00
    In stock
    .
    $ 730.00 730.0 USD
    Price Valid only in North America

    .
    $ 3,500.00
    In stock
    .
    $ 3,500.00 3500.0 USD
    Price Valid only in North America

    .
    $ 730.00
    In stock
    .
    $ 730.00 730.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    .
    $ 600.00
    In stock
    .
    $ 600.00 600.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America

    .
    $ 500.00
    In stock
    .
    $ 500.00 500.0 USD
    Price Valid only in North America
