Accessories / Parts

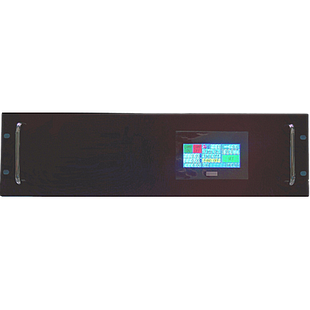

Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1.6k is designed to power 1600W Xenon and Hg-Xenon arc lamps. The 611-6k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 12.1-9.0A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 7,100.00

Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-1k is designed to power 1000W Xenon and Hg-Xenon arc lamps. The 611-1k power supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
200-240 VAC input, 7.5-6.3A, 50/60Hz, Fused 15A

This system includes 1 IEC 60320 C19 compatible power cables. Region-specific version must be selected at the time of placing an order (see product 491-9003).

$ 6,880.00

Sciencetech's new 611 series power supplies are designed to work with Sciencetech XLH series lamp houses. Includes a USB to serial adapter.
The 611-500 is designed to power 500W Xenon and Hg-Xenon arc lamps. The 611-500 Power Supply is CE compliant.
The 611 power supply includes a touchscreen interface and several useful built in components:
- Lamp life timer
- Powers and controls Sciencetech XLH lamp house fans
- Shutter and exposure controller
- RS232 Computer Control
- Safety interlock

Power Requirements
100-240 VAC input, 9.1-3.8A, 50/60Hz
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).


Includes a USB to serial adapter.

$ 6,805.00

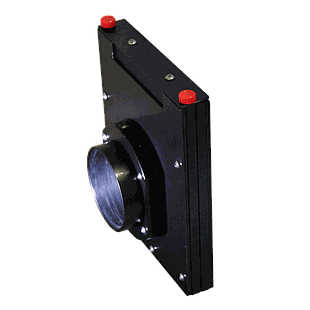

The SH-XLH-B is a computer controlled shutter for 201, LH-S, XLH-S lamp houses and SF/SLB solar simulators. Based on the successful SSES lines of blade shutters for Sciencetech's line of high powered solar simulators.
An arc lamp is not designed to be frequently turned off and on and doing so will dramatically lower its service life. In addition, each time it is turned on it requires the power supply to ignite it with a 20,000V+ spark. The best option for performing exposure testing is to integrate an electronic shutter system with the lamp house or solar simulator. This electronic shutter has an activation time of <150ms.

The SH-XLH-B can be controlled using Sciencetech 601 or 501 series power supplies (including automated explosure time control). Alternatively, a shutter controller model SH-C and SCI-SHUTTER Software are available for controlling the shutter. The SH-C controller is not included with this shutter.

This shutter can be used with any high powered light source and can effectively block a 2" diameter beam.
This shutter is closed frame and the shutter mechanism is not exposed. For an open frame shutter please see the SH-2-B-OF product.

$ 1,000.00

Sciencetech's FB1T filter box holds one filter per filter box and can accommodate up to 3" x 3" filters. The FB1T filter box is used to stop back reflections from travelling along the path of the incident light. The FB1T filter boxes are stackable, so multiple FB1T filter boxes can be attached if using more than one filter at once is required.
The FB1T has standard mounting for slip rings that are compatible with 2" diameter lens tubes.
For mounting with 1" diameter lens tubes Sciencetech's S4-1D (100-8038) coupling adaptor is required.

No filter holders are included and filter holders are dependent on the size of the filters to be used.

Compatible filter holders are the FT-series (e.g. FT-75).

$ 410.00

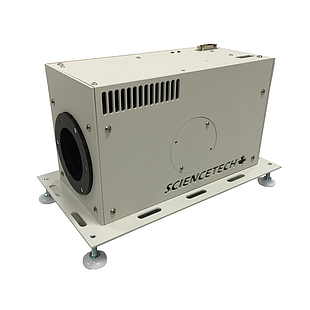

This lamp housing design is optimized for 300W xenon arc lamps. It features a parabolic reflector producing a collimated beam with a diameter of ~66 mm (exit clear aperture of the lamp house).

Lamp Power: 300W
Reflector Type: Parabolic
Lamp Type: Xenon, Ozone free (included)
Power Supply: 601-300 (sold separately)

All Sciencetech LH lamp housings feature a configurable and upgradeable housing capable of being operated in the vertical or horizontal position.

Power and communication are supplied to the housing via a single cable connected to the touchscreen power supply, allowing users to easily and neatly set up the system. A safety interlock prevents power being supplied to the housing while the cover is open, protecting users from electric shock or unwanted light exposure.

A wide variety of collimated or focused output optics is available for use with the LH-series, allowing a full range of sizes, materials, and coatings for optics to best suit the requirement. A wide variety of accessories is also available, including downward-facing stands, optical intensity feedback, and more.

$ 2,977.00

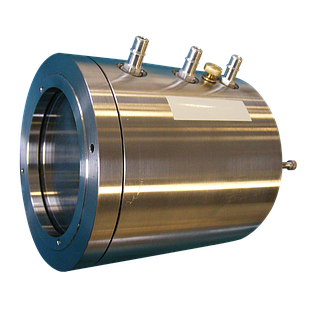

This standard IR absorbing water filter is equipped with Fused Quartz windows which transmit UV light. This allows extended UV applications. Horizontal operation only.
Aluminum has superior heat tansfer to Stainless Steel but should not be used in corrosive environments.

$ 1,785.00

This standard optical liquid filter is equipped with fused quartz windows (270 to 2500 nm) which transmit UV light and can be used for UV applications. It can be operated either horizontally or vertically but horizontal operation is preferable due to potential risk of air gap in the light path. Aluminum provides superior heat transfer compared to stainless steel but should not be used in corrosive environments.

$ 1,816.00

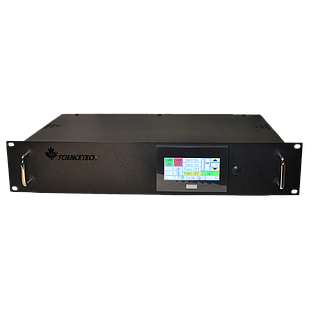

Sciencetech's touchscreen 75W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input. Includes a USB to serial adapter.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 2,767.00

Sciencetech's touchscreen 150W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input.
This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).
Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks

Optional Upgrades
-RS232 computer control with GUI
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,460.00

Sciencetech's touchscreen 300W xenon arc lamp power supply designed for use with Sciencetech's LH- series lamp housing.
This power supply features a 7W2 connection so that only one cable is required to supply all lamp power and communication to the lamp housing. This power supply also has a shutter connection and RS232 connection for electronic control of a shutter or computer control of the power supply if those optional accessories are purchased.

601 series power supplies accept 110-240VAC input.

This system includes 1 IEC 60320 C13 compatible power cable. Region-specific version must be selected at the time of placing an order (see product 491-9001).

Includes a USB to serial adapter.

Features
-single 7W2 connection for lamp power, cooling, and communication to lamp house
-easy-to-use touchscreen interface
-shutter and exposure control (if electronic shutter upgrade is ordered)
-lamp start and time log
-safety interlocks
-RS232 software GUI included, shown below

Optional Upgrades
-temperature monitor
-remote lamp status monitoring
-auto lamp starting

$ 3,460.00

.

$ 375.00

.

$ 375.00

.

$ 375.00

$ 375.00

$ 375.00

$ 375.00

The SC-12-M is a general purpose sample chamber that can be configured in multiple ways to address a number of application requirements. The SC-12-M includes 4 optical ports (on three sides and one on the top) as well as a side door for easy access to the sample area.
Three of the side walls feature optical ports with a Sciencetech standard B4 hole pattern as well as removable anodized access panels that can be machined to accommodate most types of feedthroughs including electrical, liquid and gas.

The SC-12-M can be configured for spectroscopy applications such as diffuse reflection and transmission spectroscopy, or as a light tight reaction chamber for photoelectrolysis research. The 2.2" diameter opening on the top port of the sample chamber is designed to mate to Sciencetech's solar simulators such as the SF or LightLine, as well as Sciencetech's line of LH or XLH lamp houses.

The base of the sample chamber is an metric optical breadboard with M6 tapped holes. For the Imperial version see model SC-12.

The SC-12-M is 311x 311x 219mm (12.5" x 12.5" x 8.625")(LxWxH) with internal dimensions of approximately 298 x 298 x 200mm (11.75" x 11.75" x 7.8").
Side inputs have a 3" optical height which can be increased using the included baseplate and levelling feet.
The baseplate is 355 x 355 x 6.3mm (14" x 14" x 1/4").

The standard system does not come with a sample holder. See the product literature for more information on how to configure the sample chamber.

Please see our detailed product literature for more information or contact a technical sales representative to discuss how we can help you with your specific application.

Options (not included)
- Valved water inlet and outlet ports
- Push to connect hose feedthrough (standard for Sciencetech vacuum chucks)
- AC power entry module
- Binding posts for electrical feedthrough
- Gas inlet and outlet ports (6mm Swagelok)
- Height adjustable sample tray
- Temperature controlled sample platform

Discuss your full technical needs with an authorized Sciencetech Technical Sales Staff member for further details.

$ 2,199.00

.

$ 850.00

This option adds an additional 2 filter positions to the FH-SS filter holder. The FH-SS and FH-SS-ADD option are designed to be used with Sciencetech FT-75-3 type blank filter holders as well as filters that include the -FT option. The FH-SS filter holder is used with Sciencetech's line of Fully Reflective solar simulators as well as the Solar Lightline and SciSun solar simulators.

$ 350.00
