    BSQ Solar Potential-induced Degradation (PID) Test System

    Standards: IEC61215-2 MQT21, IEC62804

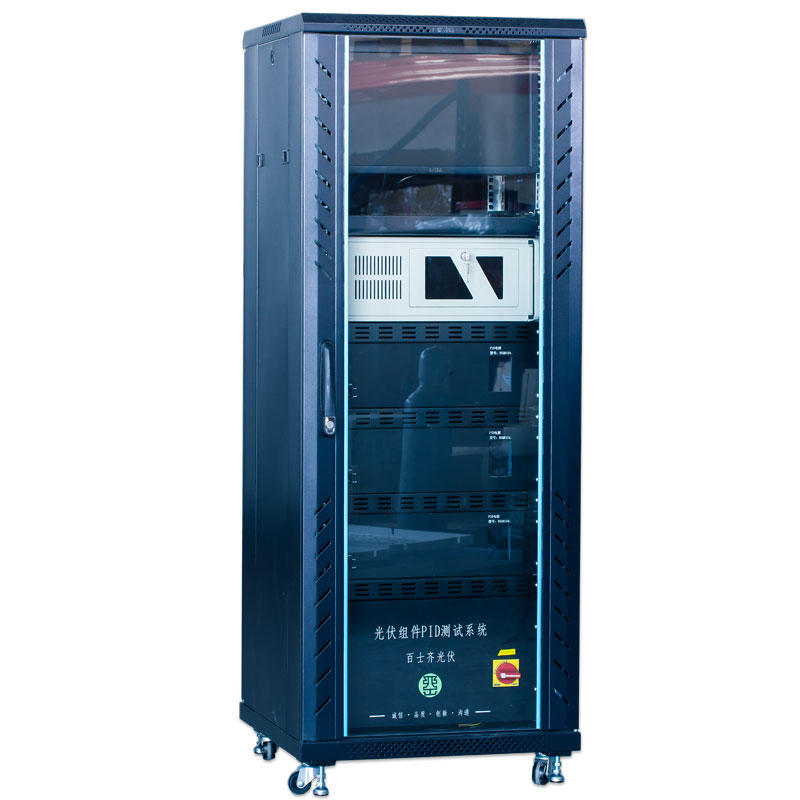

    The BSQ PID Power Supply System is engineered for precision testing of photovoltaic modules under potential-induced degradation (PID) conditions. Designed to meet international standards, it supports multi-channel output for simultaneous testing of multiple components with real-time voltage monitoring and control.

    Key Features:

    Multi-Channel Output: Independently adjustable voltage and polarity across channels for flexible testing scenarios
    Real-Time Monitoring: Continuously adjustable voltage with live parameter display
    Smart Communication: Integrates with environmental chambers to monitor temperature and humidity, ensuring compliance with the latest testing standards
    Automated Safety Response: In case of environmental chamber failure, the system automatically shuts down to protect test samples and equipment
    Leakage Current Alarm: Customizable alarm thresholds for enhanced safety and reliability

    Main Technical Parameters:

    Input Voltage AC 220V ± 10%
    Output VoltageDC -2000V to +2000V (continuously adjustable), can be upgraded to DC -2500V to +2500V
    Voltage AccuracyFor 1000V, 1500V, 2000V, the voltage fluctuation within 500 consecutive output hours is ≤ 0.5%
    Maximum rated current250μA per channel
    Currant Accuracy1μA + 1% of the full scale (F-S)
    Test ChannelCustomized by the customer

    Price Unavailable

    SKU Unavailable

    This selection is an invalid combination.
    Please make another selection.

    Contact for Pricing

    SKU: 851-9006

    Price Valid in USD and only in North America

    SKU 851-9006

    Customization:

    SCIENCETECH has built a reputation on custom solutions. Whether you need a small modification to an existing system or a completely novel design built from the ground up to meet your technical specifications, Sciencetech's engineering and optical design teams are ready to help.
